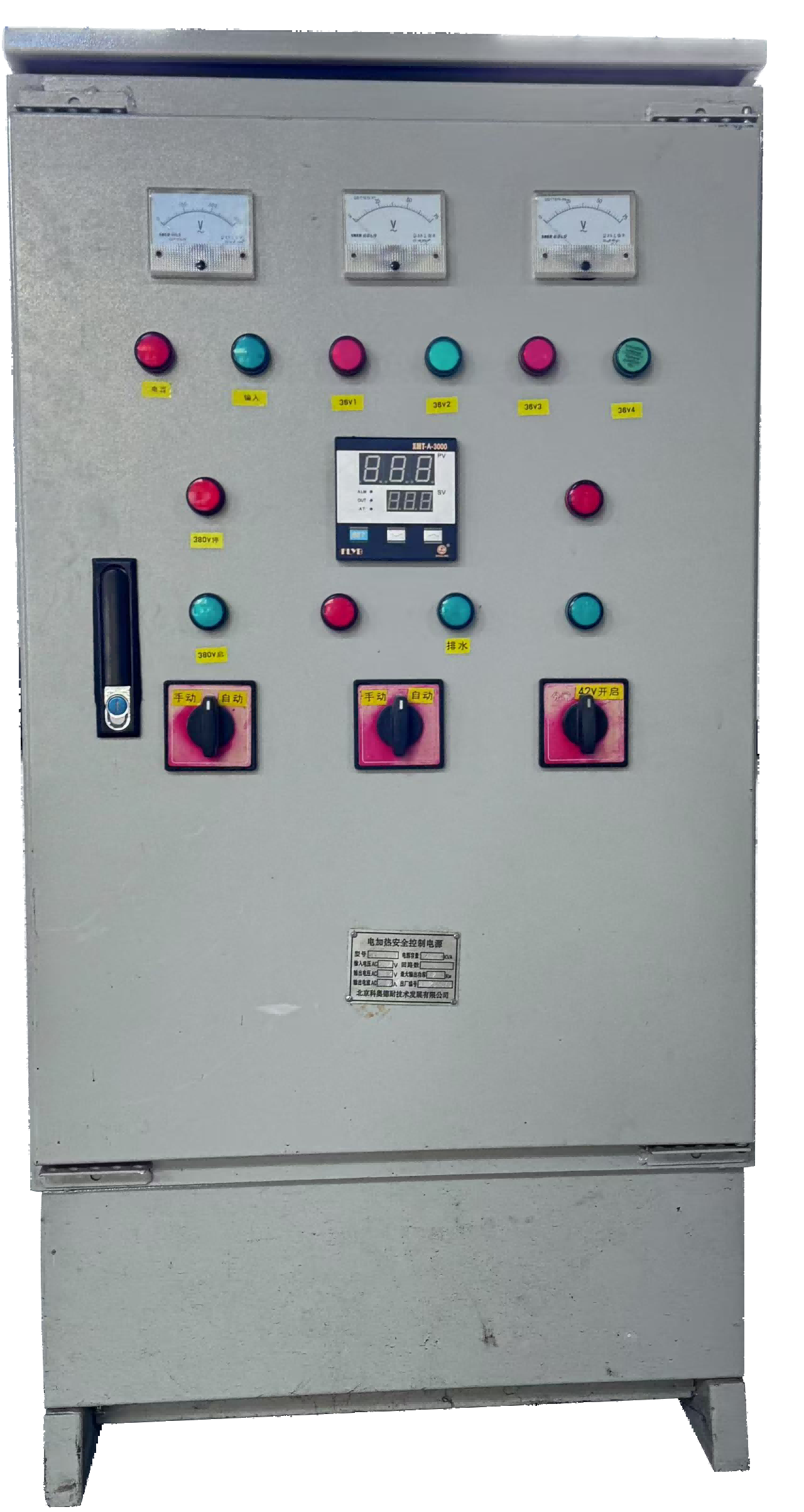

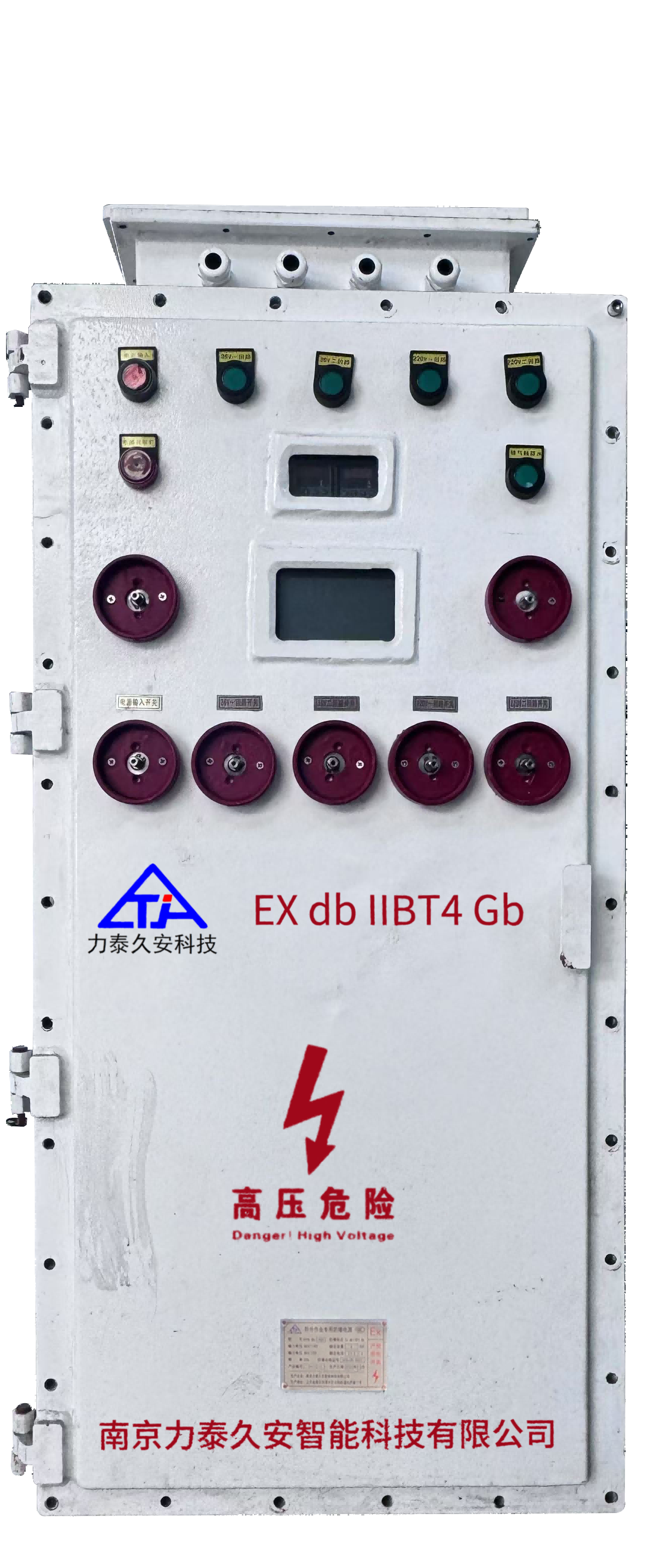

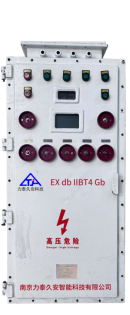

Electric heating explosion-proof safety power supply (referred to as heating safety power supply) is an AC220V/AC36V/42V low-voltage safety control power supply used for winter electric heating of pneumatic control systems and other equipment in drilling well sites.
By adopting safe voltage and dry-type isolation transformer technology, the power supply has the characteristics of small size, beautiful appearance, safe operation, and easy maintenance. It has the characteristics of small footprint and deep penetration into the load center in installation and use.
Technical Specifications:
| Model
| DYFB-380V/380V-12KW |
| Rated power
| 31.5A |
| Input voltage
| AC380V |
| Output voltage
| Three phase five wire AC380V，single-phase AC220V，DC36V |
| Leakage action time
| ≤0.1S |
| Leakage circuit breaker resistor
| ≤0.2MΩ |
| Ambient temperature
| -15℃～50℃ |
| Altitude
| ≤2000m |
| Dielectric strength
| The 1000V megohmmeter measures not less than 2M Ω
|
| Detecting ground leakage current
| AC0.04-0.12mA |
| Alarm sound
| ≤100dB |
| Transformer insulation grade | H Class |
| System grounding form
| IT approach
|
| Corrosion resistance grade
| WF1 |
The above and other safety electrical products can be customized according to the actual situation
