Name of supporting equipment | Voltage(V) | Power kW/unit | Unit | Quantity | Remarks |
Left side room | AC380V | 3 | building | 1 | |
Right side room | 2 | building | 1 | ||
Driller's room | 10 | building | 1 | ||
Disc brake water cooling | 4 | set | 1 | ||
Infusion pump | 7.5 | tai | 1 | ||
Fan | 0.75 | tai | 2 | ||
Cleaning machine | 1 | tai | 1 | ||
Left derrick lighting | AC220V | 1 | group | 1 | |
Right derrick lighting | 1 | group | 1 | ||
Drilling floor lighting | 1.2 | group | 1 | ||
Base lighting | 1 | group | 1 | ||
Well site floodlights | 1.2 | group | 1 | ||
Video surveillance | 0.5 | group | 1 |

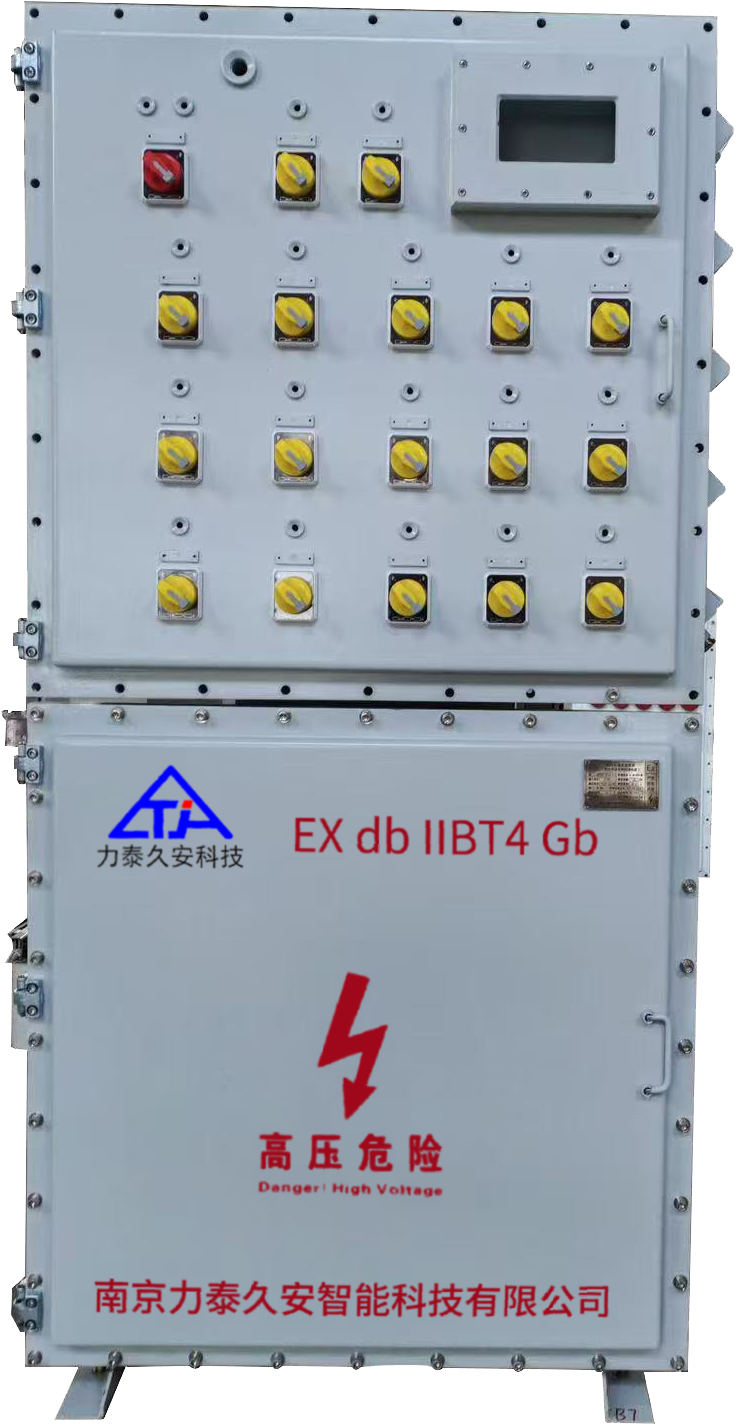

Technical Specifications:
Model
| DYFB-380V/380V-30KW/16 |
Rated power
| 60A |
Input voltage
| AC380V |
Output voltage
| Three phase five wire AC380V, single-phase AC220V
|
Leakage action time
| ≤0.1S |
Leakage circuit breaker resistor
| ≤0.2MΩ |
Ambient temperature
| -15℃～50℃ |
Altitude
| ≤2000m |
Dielectric strength
| The 1000V megohmmeter measures not less than 2M Ω
|
Detecting ground leakage current
| AC0.04-0.12mA |
Alarm sound
| ≤100dB |
Transformer insulation grade
| H Class |
System grounding form
| IT approach
|
Corrosion resistance grade
| WF1 |
The above and other safety electrical products can be customized according to the actual situation
